Label applicators engineered to meet all your needs.

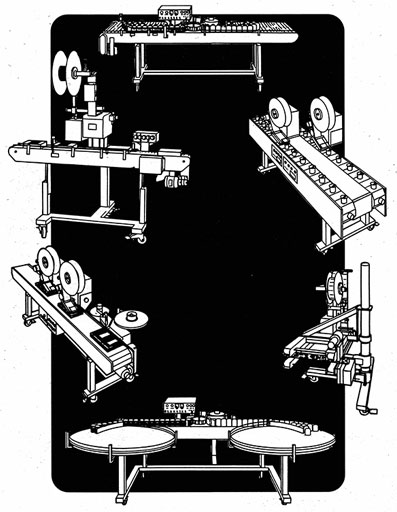

MGL Label Applicator Product Family

  • Label Application Systems
  • Top only labelers
  • Bottom only labelers
  • Top and Bottom labelers
  • Side Apply labelers
  • Dual side apply labelers
  • Horizontal wrapping labelers
  • Vertical wrapping labelers
  • MultiPanel labelers
  • Neck labelers

The Applicators with The Right Touch

All MGL equipment, with its simple digital solid state electronics and advanced mechanical technology, will give you years of efficient, dependable service. All parts are manufactured under strict quality control and in the same location. Among the unique features of our systems are our infrared sensing devices which have a life expectancy of 200,000 hours. You can’t lose with MGL systems. You can depend on a MGL applicator.

MGL labeling systems are ahead of the industry, providing an efficiency of operation that is unmatched with the shortest turnaround time from receipt of order to delivery. Whatever your labeling needs, MGL has the system that will fill them. In addition to the models described here, MGL provides a custom design service that will provide you with complete systems based on your individual needs.

*ALL labeling systems are shipped with all components mounted (including labels) and ready to run!

Labeling Machinery Types Made

  • Inline Label Applicators – Applying labels to products on a conveyor belt
  • Rotary Label Applicators – Applying labels to products on a rotating table

Labeling Head Types Made

  • Roll on
  • Air Tamp on

Markets Served

  • Dairy Industry
  • Electronics
  • Food
  • Beverage
  • Household
  • Beauty
  • Medical
  • Pharmaceutical
  • OEMs
  • Unique Products

The Right Touch For The Operator

  • Safe design
  • Easy to operate
  • Easy changeovers

The Product

  • Will not crush product
  • Non-abrasive designs
  • Accurate label placement
  • Applies wrinkle-free labels

The Company Bottomline

  • Safe to operate
  • Affordable designs
  • Very durable
  • Low power required
  • Affordable custom designs

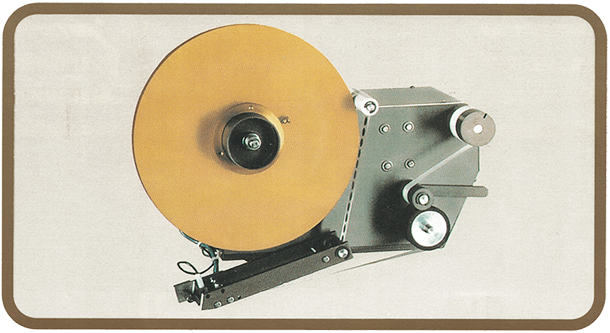

MGL Econotac Label Application Heads can be mounted to your equipment.

How It Works For You

ECONOTAC roll-on/wipe-on labeling heads will dispense pressure sensitive die cut and waste-removed labels up to 4 inches (10.16cm) wide (standard) and accepts standard 3 inch (7.62cm) cores. For wider labels, over-size machines are available according to customer specification. WRINKLE-FREE label application is insured with a dual impression label roller system. ECONOTAC can only apply labels in direction of product flow but machinery can be mounted to apply labels to bottom or side of product. ECONOTAC can easily be mounted to your existing line with a single bolt. Finished in durable anodized aluminum and stainless steel. TampTac Labeling Heads are available for labels with a high aspect ratio or that are to be applied to product areas that are recessed. Leading edge/Trailing edge – permits Econotac to shift from transmission to photo reflect optics or solve product shape problems.

Technical Specs

  • Product Name: EconoTac Labeling Head
  • Weight: < 50lbs (22.6 Kg)
  • Power Requirements: 120V A/C 50/60 Hz < 2 Amps
  • Overall Size: 8″ (20.3cm) X 8 3/8″ (21.2cm) X 15″ (38.1cm)
  • Labeling head type: Roll-on apply standard (air tamping heads available)
  • Label Types: Die-cut Pressure Sensitive labels
  • Label Roll Size: 12″ (30.5cm) O.D. on 3″ (7.6cm) I.D. roll standard (larger roll support is special order)
  • Label Width: up to 4″ (101.6mm) wide standard (larger widths available)
  • Speed: Variable speed settings included

Options

  • Universal mounting stand – Allows for easy positioning of labeling head to production line.
  • Fan fold label feeder – For feeding printed fan fold labels into labeling head.
  • Inline Imprinters – For printing barcodes, dates, or any kind of custom labels

Features

  • Safety Drive System
  • Variable speed control
  • Single bolt mounting
  • Scrapliner removal
  • Stainless steel & anodized aluminum
  • Dual Powered Label Impression Rollers

Benefits

  • Very safe for operator and product
  • Match labeler speed with production line
  • Easy to install
  • Rewinds scrapliner
  • Durable and corrosion free
  • Fool-proof label roll-on method

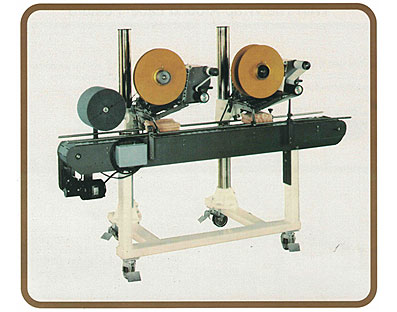

MGL Bottom or Top Label Applicators –
The bottom labeler with an optional top labeler.

How It Works For You

Product usage examples: labeling the bottom of prepackaged food.

Technical Specs

  • Product Name: BTL (top or bottom labeling) Series
  • Weight: < 350 lbs (158.75 Kg)
  • Labeling Height: Adjustable
  • Power Requirements: 120V A/C 50/60 Hz < 5 Amps
  • Conveyor Belt length: 6′ (1.8m) standard 8′ (2.43m) to 24′ (7.3m) is available
  • Labeling head type: Roll-on apply standard (air tamping heads available)
  • Label Type: Die-cut pressure sensitive labels
  • Label Roll Size: 12″ (30.5cm) O.D. on 3″ (7.6cm) I.D. roll standard (larger roll support is special order)
  • Label Width: up to 4″ (101.6mm) wide standard (larger widths available)

Options

  • Status signal – For indicating low label level and out of labels. (See web break option below.)
  • Hot stamp imprinter – For stamping date code or run number onto label.
  • Zero downtime options – A permanent or mobile redundant labeling head.
  • Clear label sensor – For detecting clear labels that are missing index mark.
  • Web break sensor – For warning if label breaks or machine runs out of labels.
  • Hugger belt – For regulating product flow – blocks overfeeding.
  • Wrapping belt – For rotating product while label is being applied.
  • Accumulator Table – For storing products after labels are applied simplifying batch pickup by system operator.
  • Fan fold label feeder – For feeding printed fan fold labels into a labeling system.

Features

  • Econotac Heads
  • Safety Drive System
  • Change to bottom or top orientation
  • Two headed option

Benefits

  • High reliability (hyperlink to labeling heads)
  • Very safe for operator and product
  • Giant product feed screw not required
  • Does bottom or top labeling permits labeling of top and bottom simultaneosly or top or bottom

MGL Single Side Label Applicator is the smart choice in single side label applicators.

How It Works For You

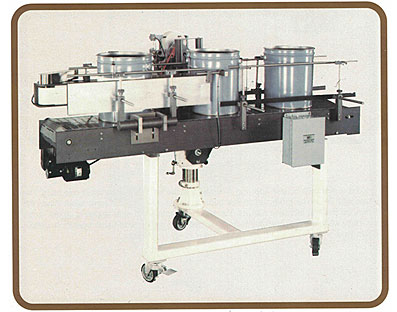

Pressure sensitive label application The MGL Econotac side labeler is shown here applying a 9″ x 12″ label to a round pail. The product is oriented into the wrap station to insure 100% adhesive contact to the product when the label is applied. The same unit can handle various size labels and containers.

Technical Specs

  • Product Name: SSL (single side label) Series
  • Weight: < 500lbs (226.79 Kg)
  • Power Requirements: 120V A/C 50/60 Hz < 5 Amps
  • Conveyor Belt length: – 6′ (1.8m) standard 8′ (2.43m) to 24′ (7.3m) is available
  • Labeling head type: Roll-on apply standard (air tamping heads available)
  • Label Type: Die-cut pressure sensitive labels
  • Label Roll Size: 12″ (30.5cm) O.D. on 3″ (7.6cm) I.D. roll standard (larger roll support is special order)
  • Label Width: up to 4″ (101.6mm) wide standard (larger widths available)

Options

  • Status signal – For indicating low label level and out of labels. (See web break option below.)
  • Hot stamp imprinter – For stamping date code or run number onto label.
  • Zero downtime options – A permanent or mobile redundant labeling head.
  • Clear label sensor – For detecting clear labels that are missing index mark.
  • Web break sensor – For warning if label breaks or machine runs out of labels.
  • Hugger belt – For regulating product flow – blocks overfeeding.
  • Wrapping belt – For rotating product while label is being applied.
  • Accumulator Table – For storing products after labels are applied simplifying batch pickup by system operator.
  • Fan fold label feeder – For feeding printed fan fold labels into a labeling system.

Features

  • Econotac Heads
  • Safety Drive System
  • Very cost effective

Benefits

  • High reliability
  • Very safe for operator and product roll-thru design
  • Lower cost to own or operate

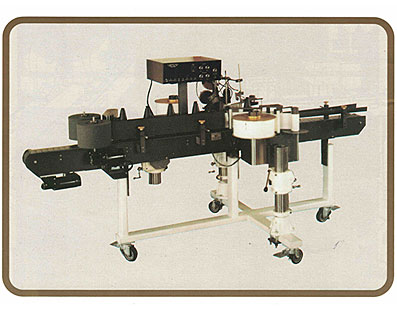

MGL Rotary Label Applicator, the two-sided applicator.

How It Works For You

Pressure sensitive label application. This unique system, shown here with conveyor wrap around station, features a process which applies pressure sensitive, die cut and waste removed labels quickly and expertly to the front and back of containers. It has no timing screws and requires few adjustments for use with different products. Each unit is custom designed to meet the purchaser’s requirements. Solid state controls with integrated circuits provide high speed and accuracy in label placement. For code dating, imprints correlated to this system are available. 400 lbs. Finished in durable, hard anodized aluminum and stainless steel, with painted tubular steel base.

Pressure sensitive label application The unit shown here is applying two labels to the top of the product in one pass. The same system can be produced so that both machines will apply the same label. When the labels on the first machine run out, the second machine will start applying labels automatically while the first machine is being reloaded to insure continuous operation without down time.

Technical Specs

  • Product Name: DSL (dual side labeler) Series
  • Weight: < 500 lbs (158.75 Kg)
  • Power Requirements: 120V A/C 50/60 Hz < 5 Amps
  • Conveyor Belt length: 6′ (1.8m) standard 8′ (2.43m) to 24′ (7.3m) is available
  • Labeling head type: Roll-on apply standard (air tamping heads available)
  • Label Type: Die-cut pressure sensitive labels
  • Label Roll Size: 12″ (30.5cm) O.D. on 3″ (7.6cm) I.D. roll standard (larger roll support is special order)
  • Label Width: up to 4″ (101.6mm) wide standard (larger widths available)

Options

  • Status signal – For indicating low label level and out of labels. (See web break option below.)
  • Hot stamp imprinter – For stamping date code or run number onto label.
  • Zero downtime options – A permanent or mobile redundant labeling head.
  • Clear label sensor – For detecting clear labels that are missing index mark.
  • Web break sensor – For warning if label breaks or machine runs out of labels.
  • Hugger belt – For regulating product flow – blocks overfeeding.
  • Wrapping belt – For rotating product while label is being applied.
  • Accumulator Table – For storing products after labels are applied simplifying batch pickup by system operator.
  • Fan fold label feeder – For feeding printed fan fold labels into a labeling system.

Features

  • Econotac Heads
  • Front and back labeling
  • Safety Drive System
  • Different size labels
  • Has trimers to permit stagger

Benefits

  • High reliability production rate, single handling
  • Very safe for operator and product
  • Giant product feed screw not required
  • Large front label with small back label location accuracy

How It Works For You

ECONOTAC roll-on/wipe-on labeling heads will dispense pressure sensitive die cut and waste-removed labels up to 4 inches (10.16cm) wide (standard) and accepts standard 3 inch (7.62cm) cores. For wider labels, over-size machines are available according to customer specification. WRINKLE-FREE label application is insured with a dual impression label roller system. ECONOTAC can only apply labels in direction of product flow but machinery can be mounted to apply labels to bottom or side of product. ECONOTAC can easily be mounted to your existing line with a single bolt. Finished in durable anodized aluminum and stainless steel. TampTac Labeling Heads are available for labels with a high aspect ratio or that are to be applied to product areas that are recessed. Leading edge/Trailing edge – permits Econotac to shift from transmission to photo reflect optics or solve product shape problems.

Technical Specs

  • Product Name: EconoTac Labeling Head
  • Weight: < 50lbs (22.6 Kg)
  • Power Requirements: 120V A/C 50/60 Hz < 2 Amps
  • Overall Size: 8″ (20.3cm) X 8 3/8″ (21.2cm) X 15″ (38.1cm)
  • Labeling head type: Roll-on apply standard (air tamping heads available)
  • Label Types: Die-cut Pressure Sensitive labels
  • Label Roll Size: 12″ (30.5cm) O.D. on 3″ (7.6cm) I.D. roll standard (larger roll support is special order)
  • Label Width: up to 4″ (101.6mm) wide standard (larger widths available)
  • Speed: Variable speed settings included

Options

  • Universal mounting stand – Allows for easy positioning of labeling head to production line.
  • Fan fold label feeder – For feeding printed fan fold labels into labeling head.
  • Inline Imprinters – For printing barcodes, dates, or any kind of custom labels

Features

  • Safety Drive System
  • Variable speed control
  • Single bolt mounting
  • Scrapliner removal
  • Stainless steel & anodized aluminum
  • Dual Powered Label Impression Rollers

Benefits

  • Very safe for operator and product
  • Match labeler speed with production line
  • Easy to install
  • Rewinds scrapliner
  • Durable and corrosion free
  • Fool-proof label roll-on method

Label Applicators FAQ Section


This section appears to be incomplete.
